Welcome to the frustrating, fascinating world of MOPA color marking. Red is notoriously one of the absolute hardest colors to nail.
First, a quick reality check on the material: MOPA color marking only works on bare Stainless Steel or Titanium. If you are trying to get red on aluminum, brass, or coated metals, it will not work. Color on stainless/titanium isn't a dye—it's a transparent layer of oxide created by perfectly controlled heat. The thickness of that oxide layer bends light to look like a specific color. Red requires a relatively thick oxide layer, meaning you have to push the heat right to the absolute limit without burning it black.
Since you have a 60W source, you have a lot of raw power, which means your settings will need to be much lower than the standard MOPA 20W/30W settings floating around online.
Starting Baseline for Red (Stainless Steel)
Because every lens and material batch is different, these settings won't give you a perfect red right out of the gate, but they will put you in the exact neighborhood so you can tweak from there.
| Parameter | Setting | The "Why" |
| Power | 15% - 25% | 60W is very strong. Start low to avoid burning the metal into a dull gray or black. |
| Speed | 150 - 250 mm/s | You need the beam to move slowly enough to bake the surface and build the oxide layer. |
| Frequency (Q-Pulse) | 350 - 450 kHz | High frequency ensures smooth, overlapping heat delivery. |
| Pulse Width (ns) | 45 - 60 ns | Longer pulse widths inject more heat into the metal, which is required for thicker oxide layers (reds and greens). |
| Hatch Spacing | 0.002mm - 0.005mm | Extremely tight spacing is mandatory. The pulses must overlap to create uniform heat. |
| Hatch Angle | Single pass (0° or 45°) | Do not cross-hatch. It puts too much heat into the intersections and ruins the color. |
The Three Golden Rules of Color
If you plug those settings in and get gold, blue, or a muddy brown instead of red, here is how you fix it:
1. Focus is Everything
Color marking is highly sensitive to focal distance. Being out of focus by even a quarter of a millimeter will completely change the color. To get red, many operators find success by finding absolute dead-center focus, and then raising the laser head by exactly +0.5mm to +1.0mm (out of focus). This widens the beam slightly, giving you a softer, broader heat profile instead of a sharp, aggressive cut.
2. The Material Finish Matters
If your stainless steel is brushed, the color will look different depending on which angle you view it from. For the brightest, most consistent reds, you need mirrored or highly polished stainless steel.
3. Test Grids are Mandatory

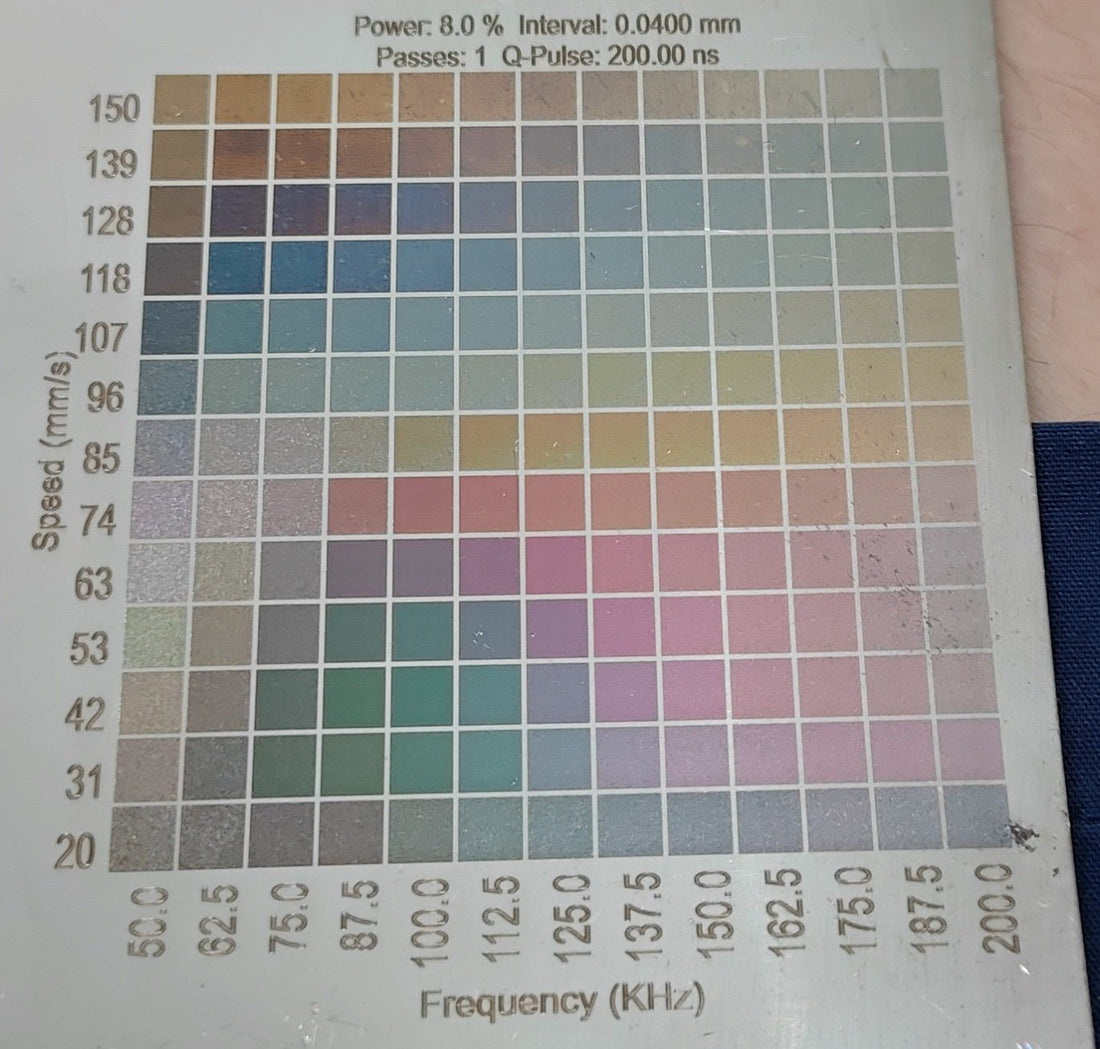

You cannot guess your way to red. In LightBurn or EZCAD, generate a material test grid.
-
Set your Speed to the X-axis (e.g., 100 to 300 mm/s).
-
Set your Power to the Y-axis (e.g., 10% to 30%).
-
Keep your Frequency at 400kHz and your Pulse Width at 45ns.
Run the grid. One of those tiny squares will be red.
