Lightburn Tutorials: The Art of Pattern Flow

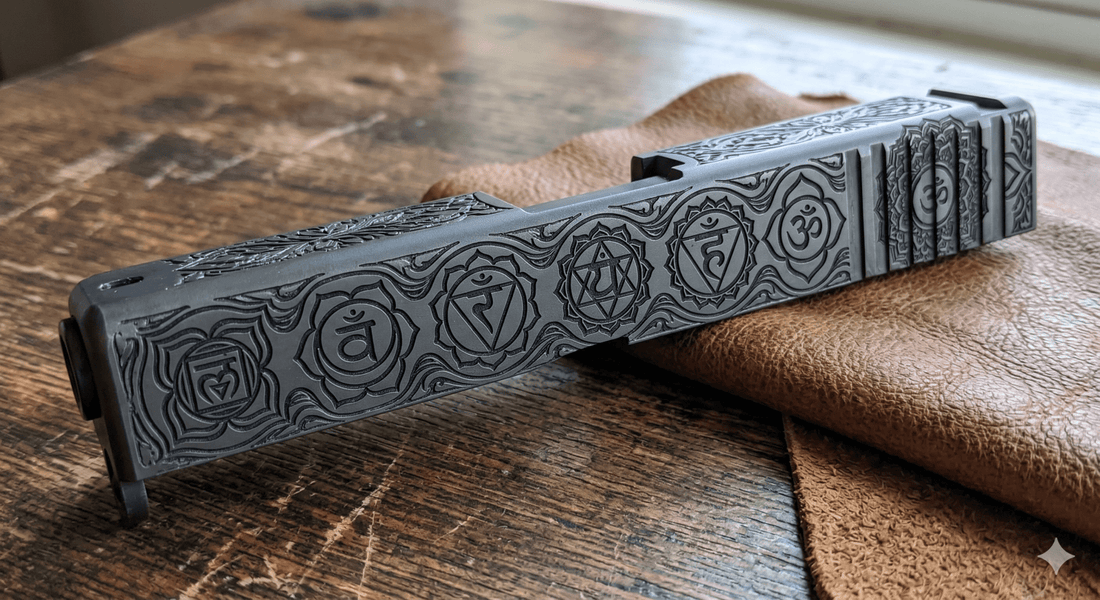

Mastering "Pattern Flow" in Lightburn is the difference between a project that looks "pasted together" and one that looks professionally engineered. Whether you’re wrapping a texture around a 3D object or tiling a complex geometric lattice, seamless flow is key.

1. The Core Concept: Alignment vs. Continuity

Most beginners simply align shapes. Pattern flow is about continuity.

• Alignment: Centers objects or snaps them to a grid.
• Flow: Ensures that the "path" of a pattern remains unbroken across seams or different workpieces.

2. Essential Tools for Seamless Flow

To achieve perfect flow in Lightburn, you need to move beyond the basic "Move" tool:

• The Array Tool : Don't just copy-paste. Use the Grid Array to maintain exact spacing (X and Y distance) so your pattern "beats" stay consistent.
• Virtual Arrays: Use these to preview how a pattern flows across your workspace without committing to the final geometry.
• Boolean Tools: Use Boolean Union to weld overlapping patterns, ensuring the laser head follows a single continuous path rather than double-cutting intersections.

3. Pro-Tip: The "Reference Point" Strategy

The secret to flow is a shared anchor.

1. Create a "Sacrificial Frame" around your pattern.
2. Use the "Start From: User Origin" setting.
3. By keeping your origin consistent, you can "flow" a pattern across multiple sheets of material by simply shifting the design by the exact width of your frame.

The Workflow: 3 Steps to Fluidity

1. Generate: Create your base tile using the Array Tool.
2. Nest: Place your project shape over the pattern.
3. Clip: Use the Boolean Assistant to mask the pattern into your shape.
